ClimatBloc™ LocFrame™

Product Specifications

Hemp/Lime Specifications

Length: 21.3″ (542mm) X Width: 10.7″ (272mm)

Interlocking Wall System Measures

Blocks may be cut to size using standard power or hand saws (Bandsaw  recommended). It is required that all fasteners be stainless steel or  ceramic coated, to avoid corrosion. ClimatBloc™ building system is very cost effective and quick to construct, lowering labor costs and time to completion while delivering a superior and sustainable product.

I.

  • Strong vertical load bearing compression strength
  • High Insulation value
  • Very fire resistant > 2 hour rating, 0 flame 0 smoke spread
  • Easy handling with a solid feel, 13 kg (28.7 lbs) per block
  • Breathable, Non-Toxic walls that are moisture and air permeable
  •             air permeability <0.002 L/s/m^2
  •             humidity permeability 23 gm/m^2/mm hg

II.

  • Regulates temperature and humidity while retaining heat
  • Acoustic properties Mean Acoustic Absorption Coefficient 0.10-0.55 NRC (Depending on coatings)
  • Acoustic properties STC 32-42 dB (Depending on coatings)
  • Low labour costs and rapid construction; Labour is estimated at 10.7 ft2 or 1 m2 / man hour

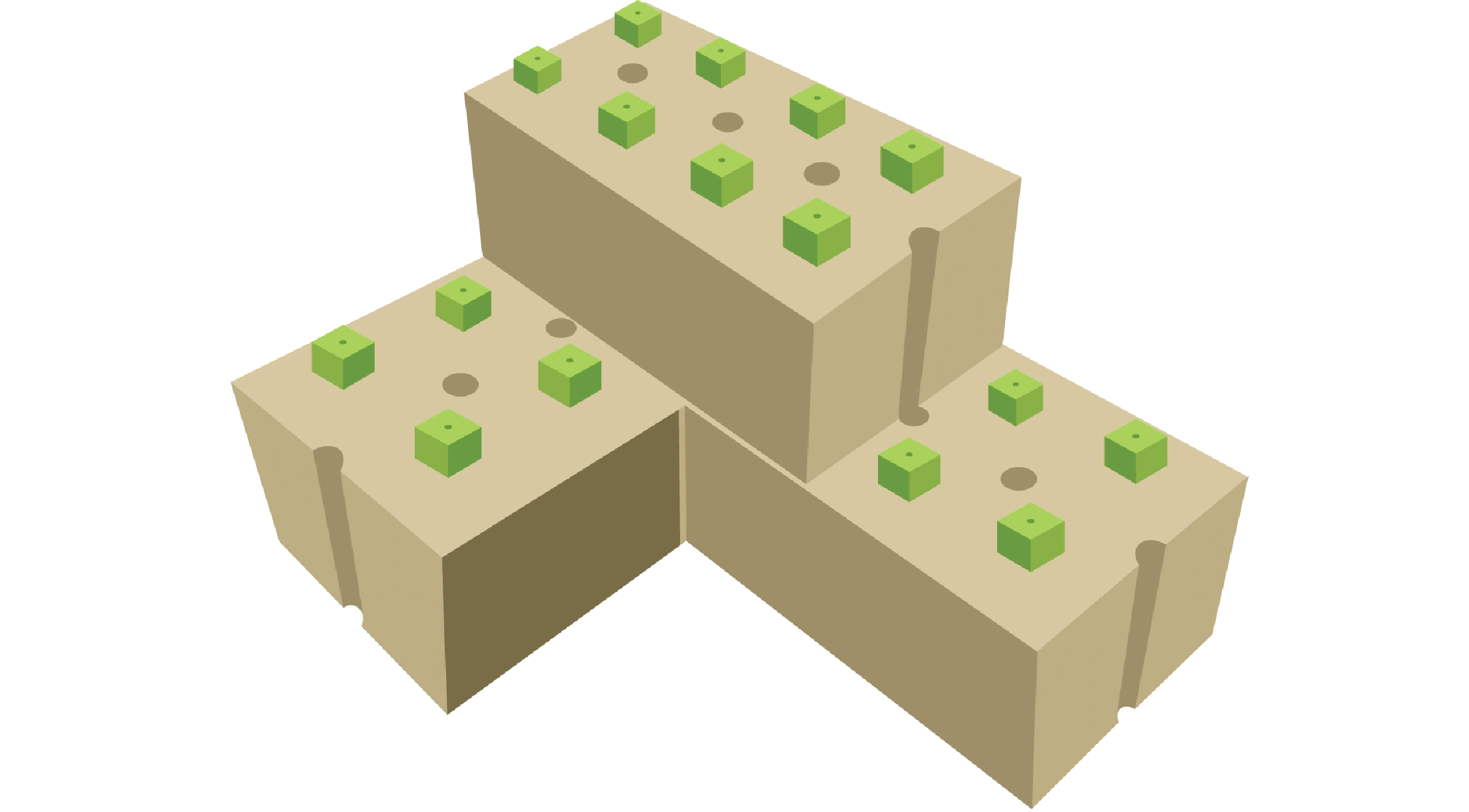

  • Interlocking design can be overlapped and turned 90 degrees for corners and intersecting walls

III.

  • Longevity, the building will last for over 100 years
  • Insect and mold resistant
  • Blocks are made using industrial hemp and lime without portland cement
  • Internal structural frames are made using advanced composites that are fire resistant without any (Red List) toxic ingredients

Specifications are subject to change as new and improved binders and processes are developed. We have developed a construction manual with detailed drawings to answer your construction questions. Please contact us by email. Please send us a message for a personal reply if you have more questions.
